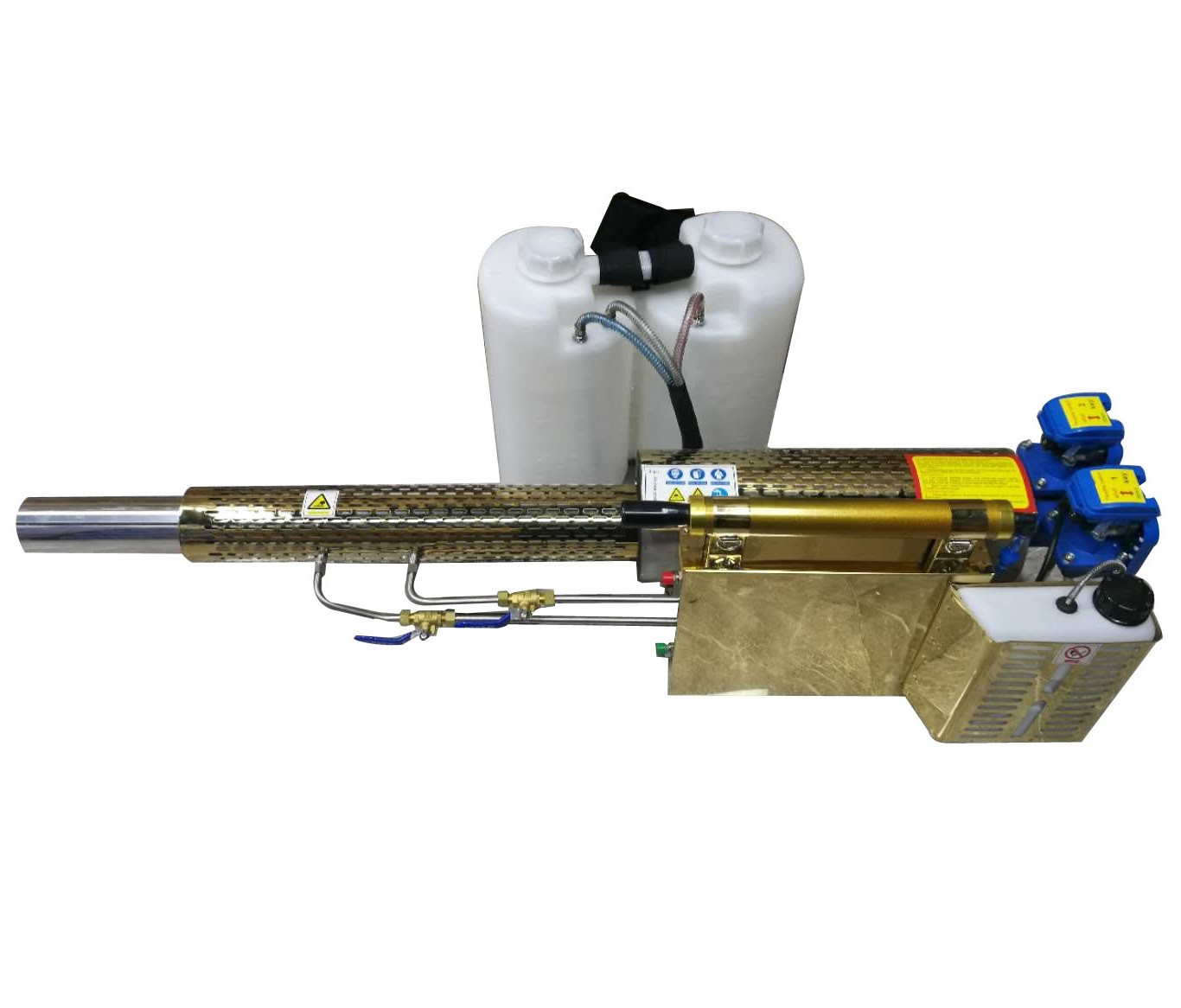

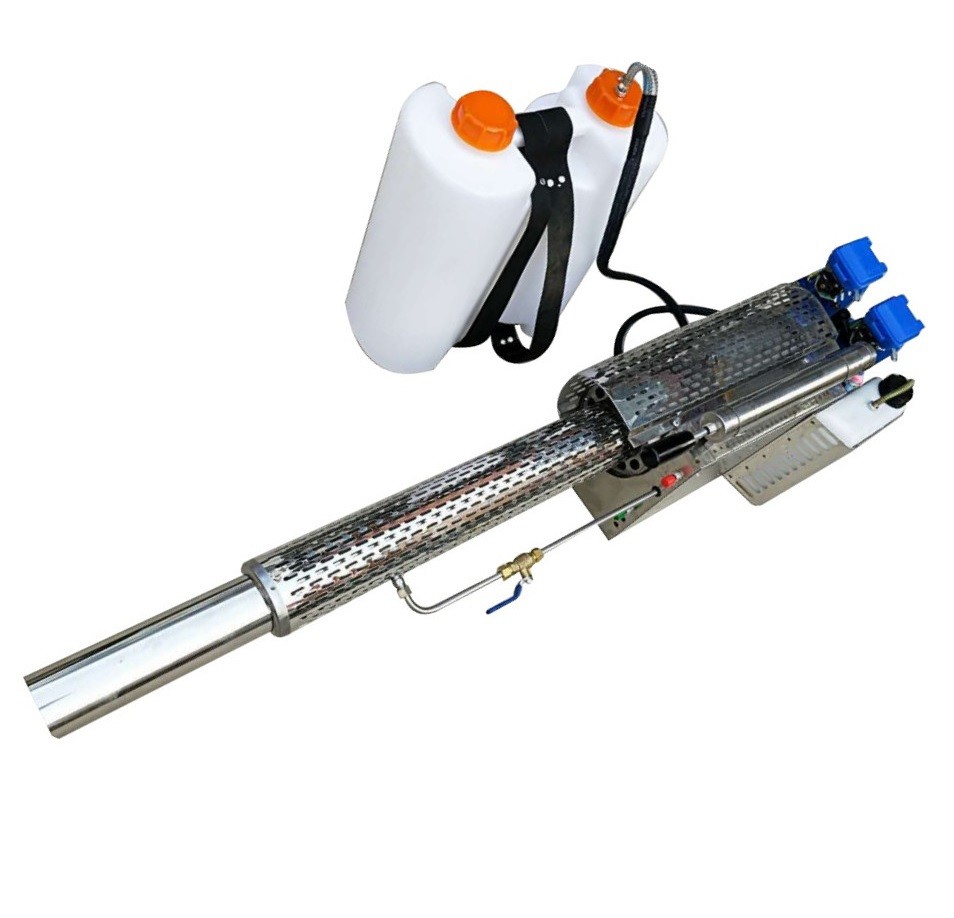

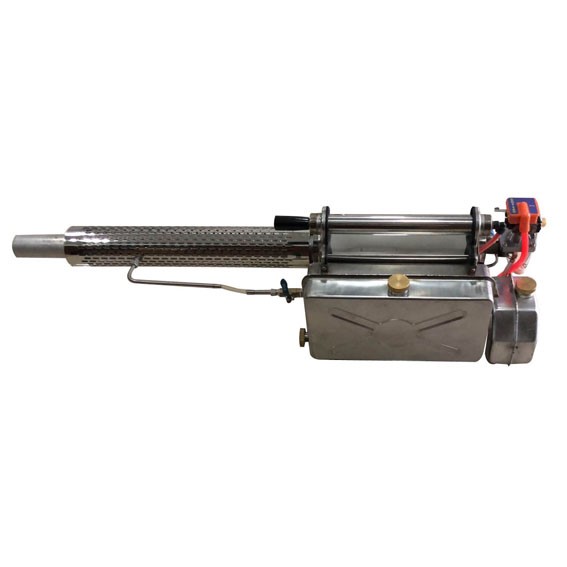

MF-1000
Our thermal fogging machine is a new product independently researched and developed by the company which is currently the world’s most advanced product of its kind. It’s uses modern rocket technology, with maintenance free pulse jet engine, without any rotating parts in the whole machine and no need for lubrication system, whose character is simple structure,no wearing between components, low failure rate, long service life, easy maintenance, less fuel consumption, and high working efficiency.It is an ideal high-tech product for pesticide spraying, epidemic prevention and disinfection.
|
|
Technical Parameters of Single tube--ZY-ST |
Technical Parameters of Double tube --ZY-DT |
|
Working environment |
Temperature between -10C0 to 35C0.Air humidity 80%-30%. |
Temperature between -10C0 to 35C0.Air humidity 80%-30%. |
|
Spraying efficiency |
80-120L/h |
80-120L/h |
|
Pesticide tank |
15L |
15L |
|
Fuel tank |
2L |
2L |
|
Machine net weight |
8.3kg |
8.7kg |
|
Packing weight |
14kg |
14.2kg |
|
Machine dimension |
1180*280*310mm |
1180*280*310mm |
|
Packing size |
1360*300*400mm |
1360*300*400mm |
|
Fuel to be used |
Petrol (92# or above lead-free petrol.
Not to add any lubricant agent. |
Petrol (92# or above lead-free petrol.
Not to add any lubricant agent. |
|
Fuel consumption |
3.0L/Hr |
3.0L/Hr |
|
Ignition Power |
12V rechargeable batteries |
12V rechargeable batteries |
|
Machine model |
Host is shoulder portable, backpack of tank. |
Host is shoulder portable, backpack of tank. |
|
Matched power unit |
Pulse jet engine |
Pulse jet engine |
1. Join the gasoline: do not clean the oil from impurities in the container（Join 92 # above lead free pure gasoline).
2. Add the liquid medicine: first, the liquid in the prepared in advance of the fully dissolved uniform, the use of liquid medicine to join the funnel, cannot be mixed with sand and weeds and other debris.
3. Repeatedly press the oil bubble, the oil bubble filled with oil, injected into a little fuel to the carburetor.

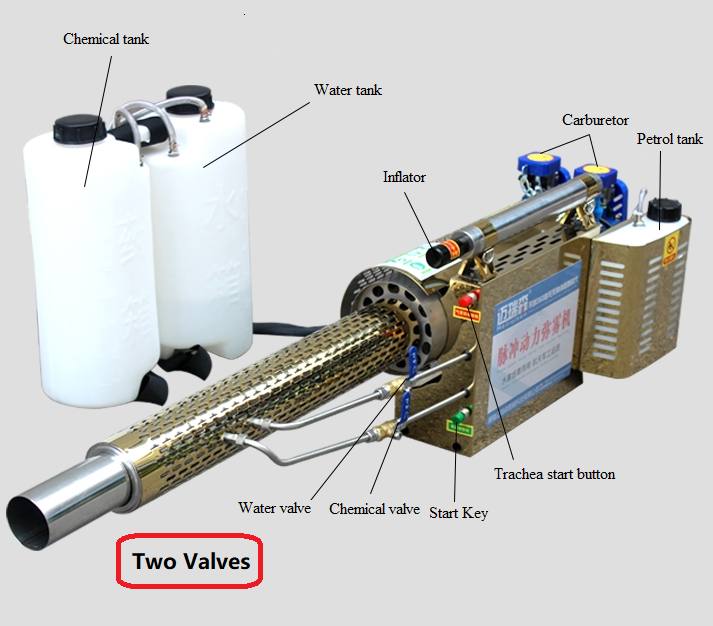

Boot operation:
1. The manual starting mode: long press the power switch, pull the trachea handle continuous encouragement, until the machine start up. Failing to start repeat the above steps.
2. Start mode: press the start button, until the start, if not start, repeat the above steps
Shutdown operation:
1. When the machine is stopped, the medicine liquid switch is first closed.
2. Then close the throttle handle (no throttle, no gear adjustment models, turn off the oil circuit switch)
|
Possible causes | Treatment strategy |
|
The outbreak of carbon tube |
Remove the outbreak of tube coke (liquid spray head and a nozzle) |
|
Diaphragm damage |
The replacement of the film in the carburetor |
| Insufficient starting gas |
Replace the cups or add lubricating oil pump replacement pump |
|
|
|
Sparking plug misfiring |
Check power, clean or replace spark plug, adjust the spark plug gap to 2mm, the ignition device is damaged to replace the ignition device |
|
Box cover is not cover tightly |
Check for leaks |
| Gas path damage | Replacement of gas path | |
| Check valve damage |
Replacement of gas path, Check valve damage, Replace check valve |
|
| Drug blockage |
Check the drug road is transparent |
