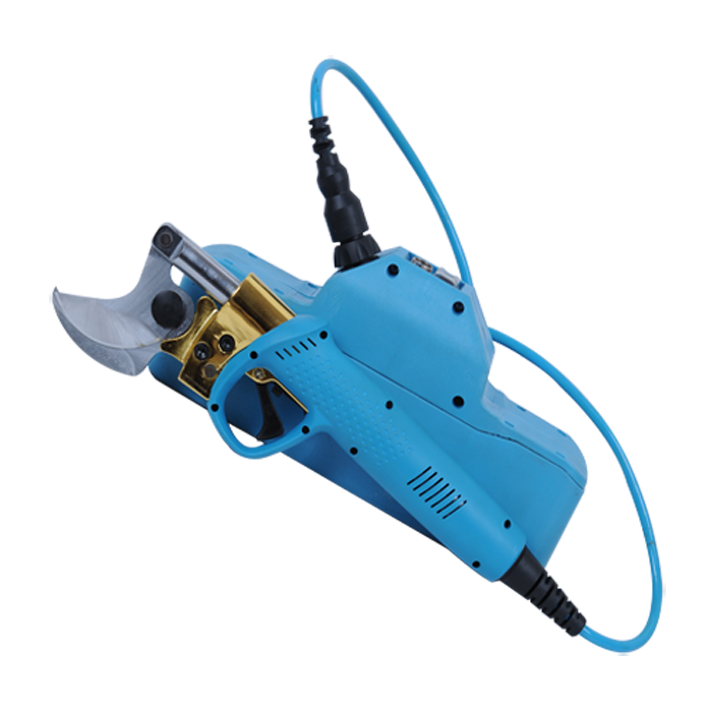

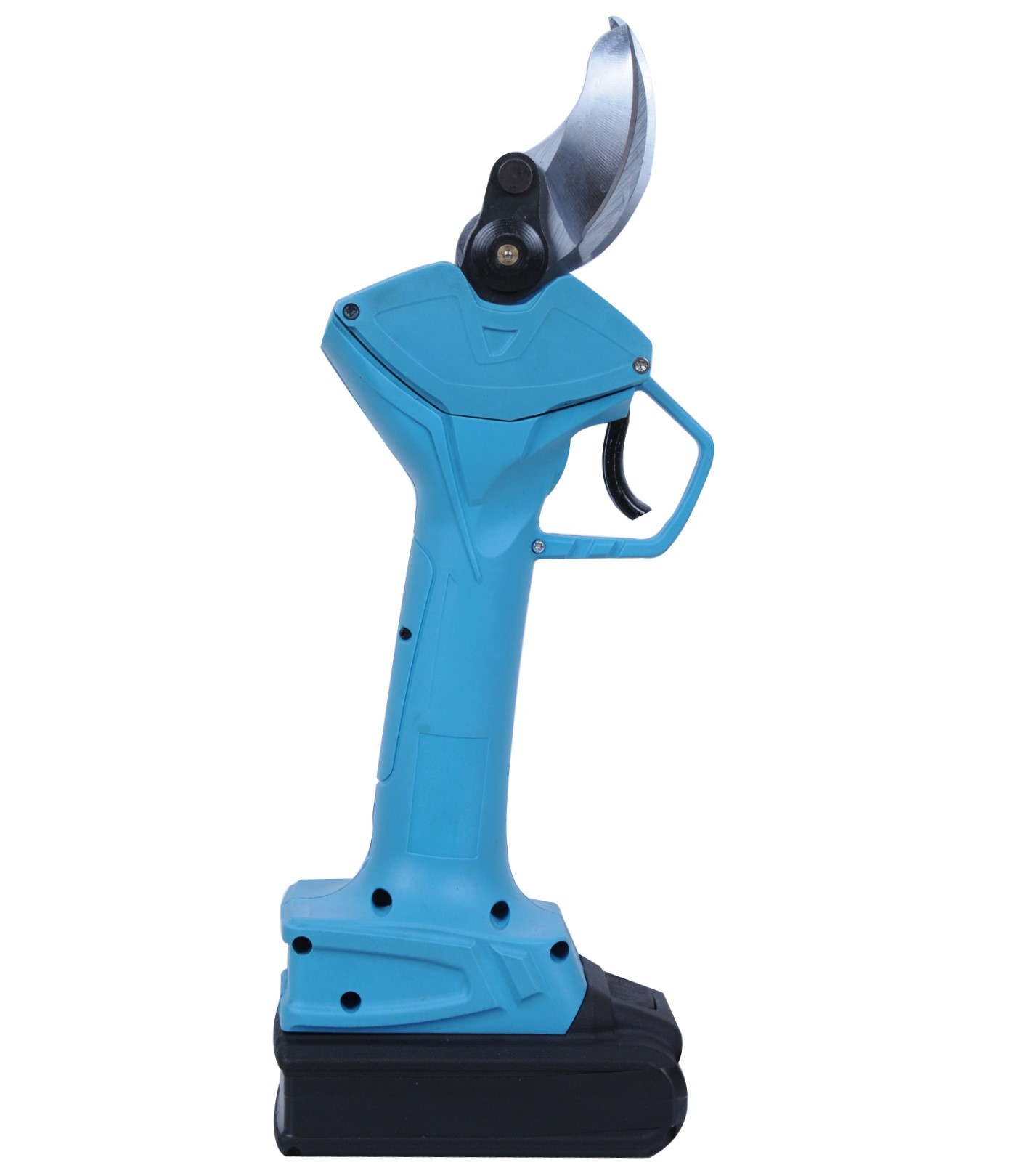

40mm Electric branch scissors
This product is a battery-driven electric pruning shear comprises a fixed blade, a movable blade, lithium battery, battery charger, power cord, work vest, tool box and other components. Designed for cutting or trimming or less branches in fruit orchards, vineyards, etc. Simple and easy to operate, it also has 8-10 times the efficiency of traditional manual pruners. Pruning quality is significantly higher as compared to manual pruners.
|

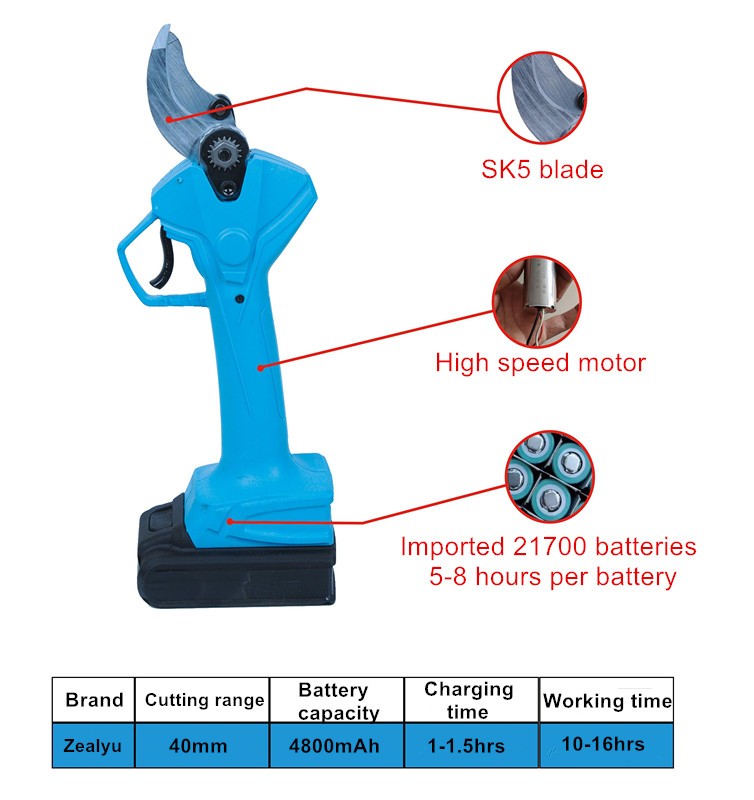

Basic information of electric branch scissor |
||
|
Operating voltage |
21V |
21V |
|
Lithium battery |
2000mAh |
4000mAh |
|
Charging voltage |
AC110V~220V |
AC110V~220V |
|
Charging duration |
1~1.5 hours |
1~1.5 hours |
|
Operating duration |
8~10 hours |
10~12 hours |
|
Rated power |
200W |
200W |
|
Max power |
800W |
1000W |
|
Shear weight |
950KG |
1000KG |
|
Cutting range |
||
|
Diameter |
40mm branches |
40mm branches |
|
Operating Temperature |
14℉~149℉/ -10℃~65℃ |
14℉~149℉ / -10℃~65℃ |

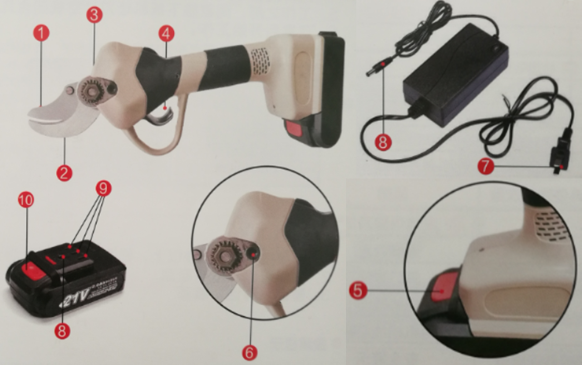

Product Components
1. Movable blade
2. Fixed blade
3. Latch pin
4. Trigger
5.Power switch
6.Lubrication hole
7. Electric Pruning shear's power input connector
8. Charging hole
9.Battery output connector
10. Release button
When the moving blade no longer crosses the fixed blade throughout its length, or when the power pruner could no longer have a clean cut after grinding, blade replacement is recommended with the following steps:
1. For safety, before replacing the blade, please ensure the pruning shear is power OFF and power cable disconnected from the battery.
2. Refer to the diagrams below on the procedure to replace the blade.
3. Clean up the blade after replacing, connect to power cable to battery, power ON to test the blade, close up the blade to complete the whole procedure.
|
Buzzer Sound
Frequency Times |
Failure |
Solution Method |
|
1 |
Battery capacity failure |
Check if battery capacity is low |
|
2 |
Communication failure |
Check if every part of cable connector is loose |
|
3 |
Blade failure |
Oil on blade |
|
4 |
Motor phase loss |
Send it to local dealer For maintenance |
|
5 |
Motor phase line short-circuit |
Check if cable or head of the connector
has short-circuit caused |
|
Buzzer continuous ringing |
Safety warning |
Check whether body contact to the blade |
